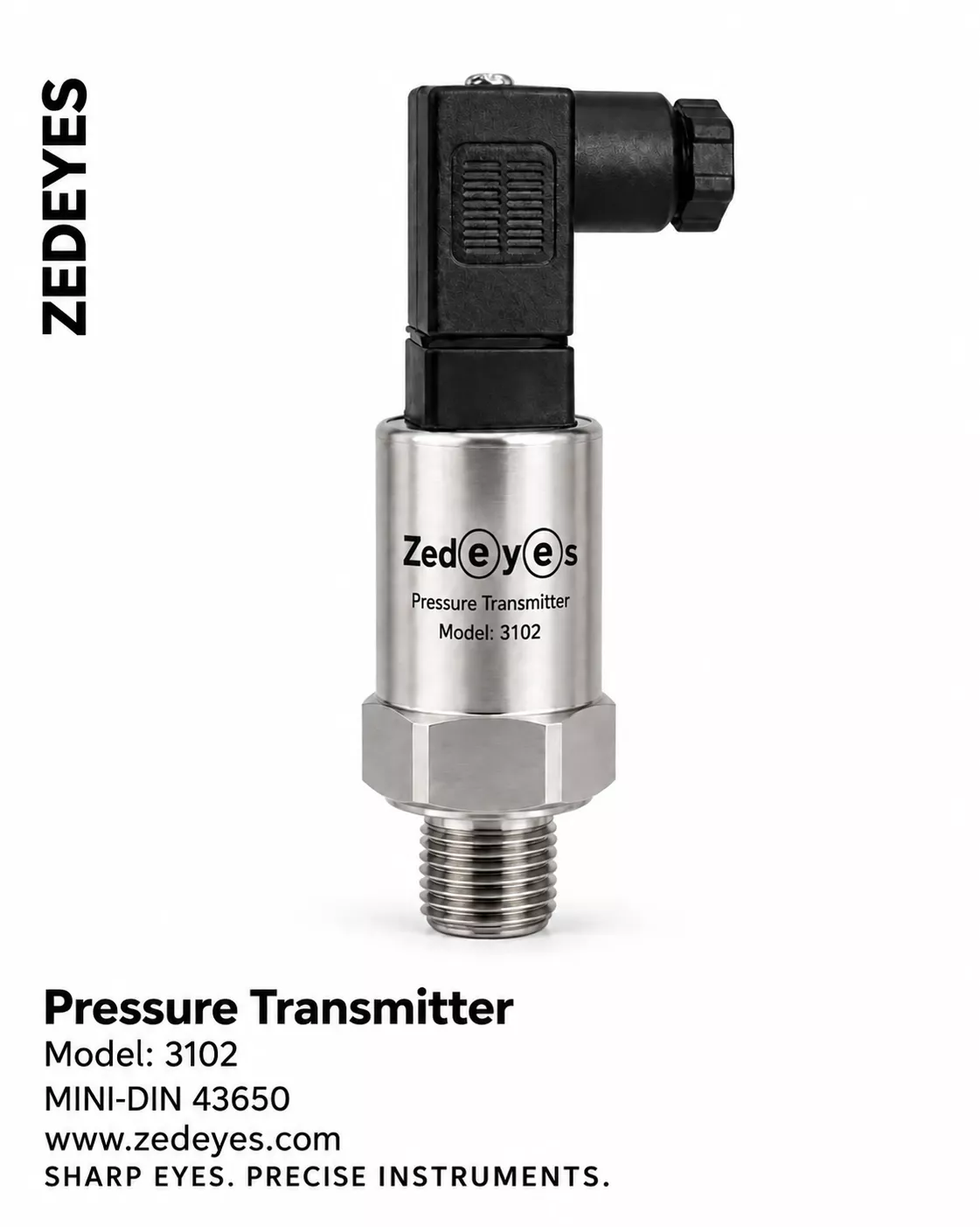

Zedeyes 3102 Pressure Transmitter
The Zedeyes 3102 is a highly versatile, compact pressure transmitter designed around an imported diffused-silicon, oil-filled piezoresistive sensing core. Combined with advanced signal-conditioning electronics and precision laser trimming, the Model 3102 delivers exceptional thermal stability, high overload capability, and accurate signal transmission across severe OEM and industrial automation applications.
Built with a rugged, corrosion-resistant all-stainless steel body, the Cal-Mate 3102 supports an exceptionally broad array of analog and digital output options (including 4–20 mA, 0–5 V, 0–10 V, 0.5–4.5 V, I2C, and 0–100 mV). Coupled with wide process connection choices and multiple electrical connector configurations, it offers seamless integration into pump systems, HVAC networks, and agricultural machinery.
Key Features & Benefits
-
Imported Silicon Sensing Core: High-precision diffused-silicon piezoresistive core with laser-trimmed temperature compensation ensures high stability and low thermal drift.
-
Ultra-Compact & Flexible Installation: Small footprint permits direct installation into tight OEM manifolds, automotive assemblies, and pump control panels.
-
Extensive Signal & Communication Options: Configurable with standard analog current/voltage outputs as well as low-power ratiometric and digital I2C interfaces.
-
Broad Range & High Overload Protection: Handles pressure spans from 50 mbar up to 1,000 bar (including gauge, vacuum, compound, and absolute ranges) with high overload protection against hydraulic spikes.
-
Rugged Stainless Steel Enclosure: IP65-rated stainless steel construction provides superior durability against ambient weathering, water splash, and mild industrial chemicals.
-
Modular Connections: Wide choice of electrical connectors (Packard, Mini DIN, M12, GX12-3, cable outlet) and thread standards (G1/4, 1/4 NPT, M20×1.5, UNF).
Primary Applications
-
Pump Systems & Pipeline Automation: Automatic booster pumps, municipal water delivery, pipeline pressure regulation, and agricultural irrigation skids.
-
HVAC & Refrigeration Systems: Condenser pressure control, chiller lines, and refrigerant loop monitoring.
-
Automotive & Mobile Hydraulics: Automotive component testing, engine oil pressure monitoring, and mobile machinery hydraulics.
-
Water & Wastewater Treatment: Filtration skids, chemical dosing lines, and tank pressure monitoring.
Specification
| Pressure Ranges: | from as low as 50 mbar to as high as 1000 bar Compound, vacuum & absolute ranges | |
|---|---|---|
| Zero temperature drift: | 2 % | |
| Electrical connections: | Cable outlet, Packard, Mini DIN43650, GX12-3 or M12 4-pin | |
| Process connections: | ≤ ±0.2% of spanG1/4, 1/4 NPT, M20 x 1.5, M10 x 1, G1/8, 1/8 NPT, 7/16-20 UNF female or other | |
| Accuracy: | 0.25 % to 0.5 % of full scale | |
| Wetted Parts: | Stainless steel | |
| Output Signal: | 4-20 mA, 0-5 V, 0-10 V, 0.5-4.5 V, I2C, 0-100 mV or other | |
| Voltage: | 0-5 V, 0-10 V or 0.5-4.5 V options according to supply voltage | |
| Protection class: | IP65 | |
