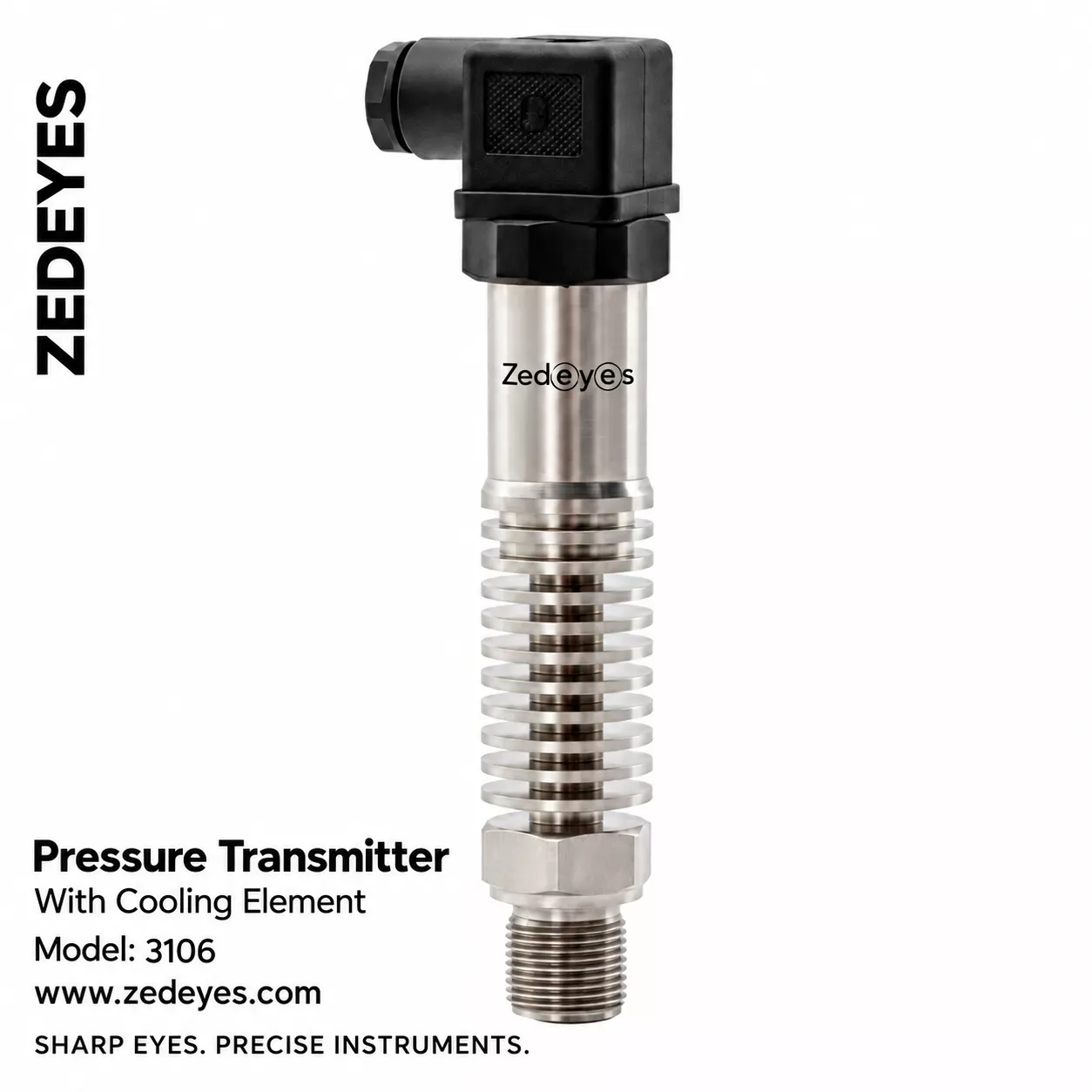

Zedeyes 3106 High-Temperature Pressure Transmitter

The Zedeyes 3106 is a heavy-duty industrial pressure transmitter engineered specifically for high-temperature fluid and gas applications. Featuring an integrated threaded cooling element attached directly to its process connection, the Model 3106 effectively dissipates extreme process heat before it reaches the internal electronics, ensuring reliable, long-term performance under elevated thermal conditions.

Built with a high-stability silicon inductive sensor, full SS316/SS316L housing and wetted parts, and flexible output signal options (including standard 4–20 mA), the Zedeyes 3106 delivers high measurement accuracy ($\pm0.5\%$ or $\pm1.0\%$) across pressure ranges up to 0–100 bar as well as compound ranges.

Key Features & Benefits

• Integrated Threaded Cooling Element: Specialized thermal dissipation fins isolate process heat, protecting delicate internal sensor electronics during high-temperature operation.

• Silicon Inductive Sensor Technology: Offers superior signal stability, fast dynamic response, and low thermal hysteresis across demanding pressure cycles.

• All-Stainless Steel Enclosure & Wetted Parts: Durable SS316 housing and SS316/SS316L wetted surfaces ensure high corrosion resistance against aggressive industrial process media.

• Flexible Signal & Power Options: Standardized 4–20 mA current loop output (with optional alternative signal outputs) operating on a wide 10–32 V DC power supply.

• High Measurement Accuracy: Available in Class 0.5% and Class 1.0% accuracy grades to accommodate both high-precision loops and general process control.

Primary Applications

• High-Temperature Process Lines: Steam headers, thermal oil loops, heat exchangers, and hot water utility systems.

• Petrochemical & Chemical Refining: High-temperature hydrocarbon processing and chemical synthesis skids.

• Power Generation & Boilers: Boiler feed systems, turbine auxiliary loops, and high-temperature gas monitoring.

• Hydraulics & Industrial Machinery: Plastic injection molding machines, hydraulic presses, and thermal processing equipment.
