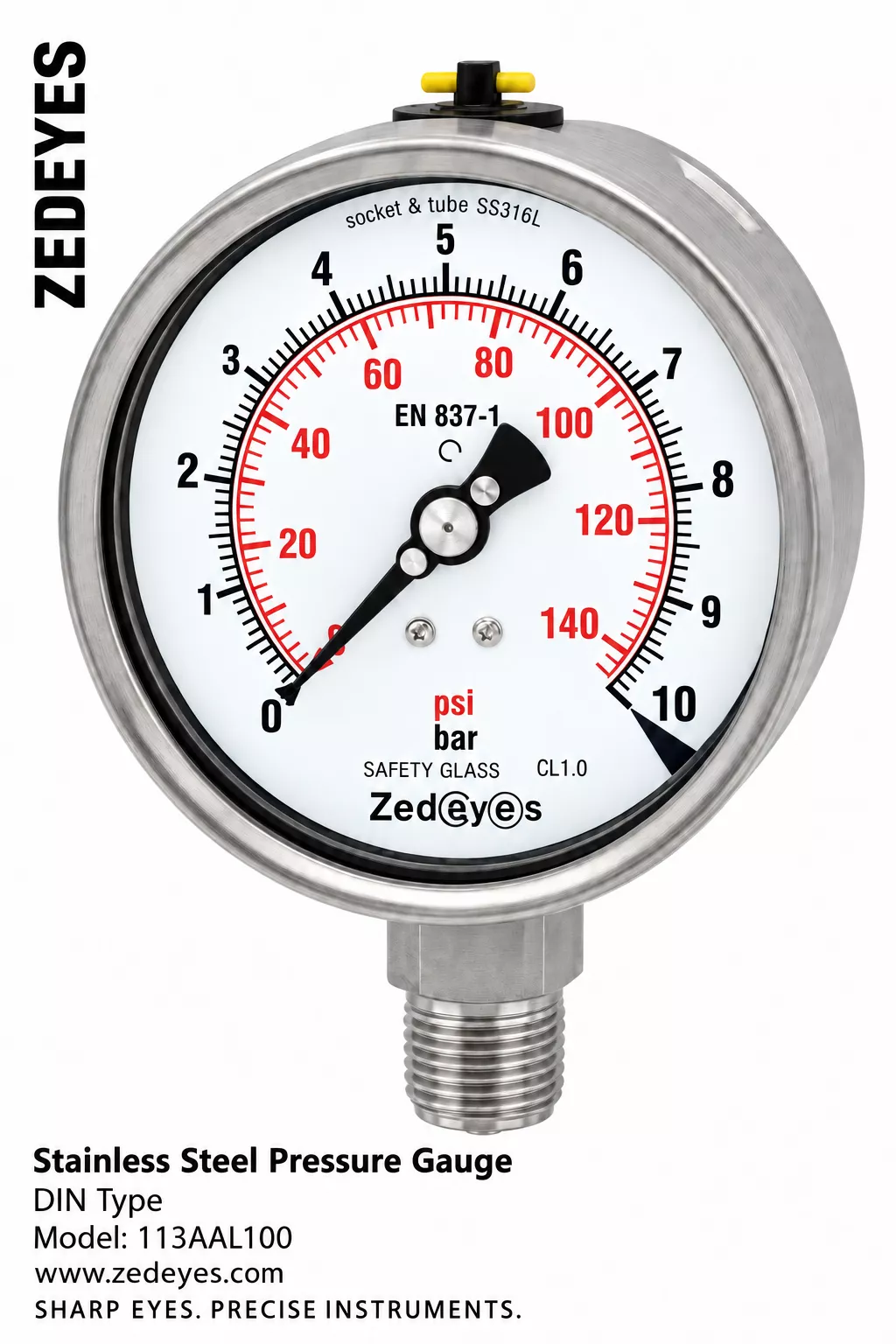

Zedeyes 113AA All Stainless Steel  Pressure Gauge

The Zedeyes 113AA is a premium, heavy-duty industrial pressure gauge constructed entirely from high-grade stainless steel. Engineered for severe operating conditions and harsh environments, every 113AA unit undergoes rigorous factory testing—including pressure cycle testing, vibration testing, overpressure testing, and Helium leakage testing—to guarantee maximum operational reliability and leak-tight safety.

Featuring an IP65 weatherproof enclosure, a micro-adjustable pointer as standard, a laminated safety glass window, and a rear blowout disk, the Model 113AA delivers accurate, highly repeatable performance across pharmaceutical plants, power generation facilities, offshore platforms, and petrochemical refineries.

Key Features & Benefits

• Full Stainless Steel Construction: Durable SS304 matte casing paired with SS316 / SS316L wetted parts provides maximum resistance against corrosive process media and harsh atmospheric elements.

• Rigorous Quality Assurance: 100% factory tested for pressure cycling, mechanical vibration, overpressure limits, and mass spectrometer Helium leak detection.

• IP65 Ingress Protection & Safety Glass: Heavy-duty sealed case rated to IP65 with a safety glass window and integrated blowout disk for superior operator and instrument protection.

• Standard Micro-Adjustable Pointer: Allows quick and precise zero-point recalibration directly in the field without removing the dial face assembly.

• Geometrically Balanced Dial Layout: Clear, high-contrast dial typography and clean scale layout make readings fast, accurate, and easy on the eye.

• Extensive Size & Range Versatility: Available in four nominal sizes (63 mm, 100 mm, 160 mm, and 250 mm) covering pressure ranges from 0–0.6 bar up to 0–1,600 bar, plus vacuum and compound spans.

Primary Applications

• Chemical & Petrochemical Processing: High-pressure chemical feed lines, reactors, and refinery process units.

• Power Generation & Offshore Platforms: Steam turbines, boiler feed pumps, offshore oil rigs, and marine propulsion systems.

• Pharmaceutical & Food Processing: Clean utility lines, process water loops, and sanitary skids (when coupled with diaphragm seals).

• Diaphragm Seal Assemblies: Ideal base gauge for coupling with Zedeyes diaphragm seals when measuring viscous or corrosive fluids.
