Zedeyes 3204 Digital Pressure Gauge

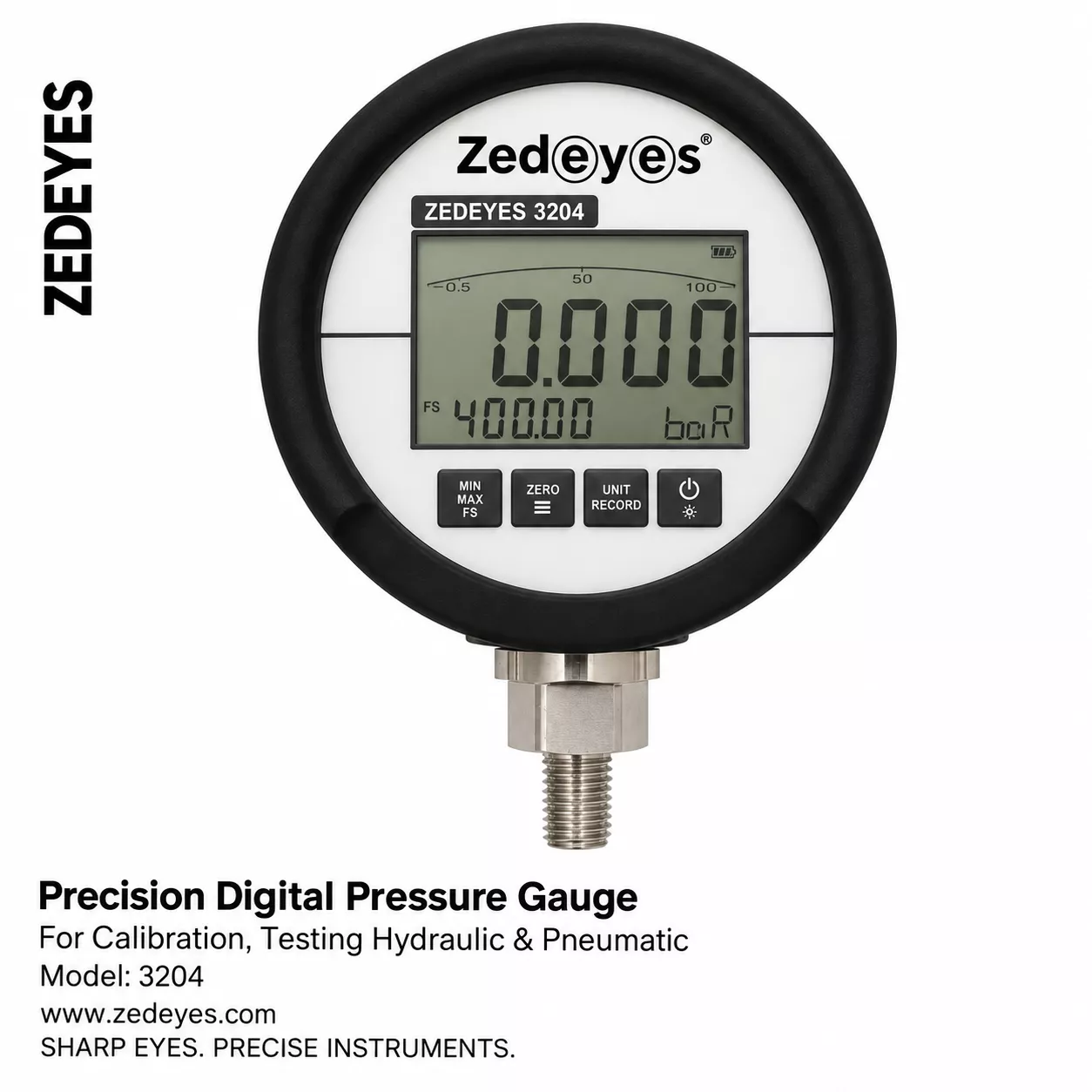

The Zedeyes 3204 is a heavy-duty 100 mm digital pressure gauge engineered for high-accuracy field measurement, routine maintenance, precision calibration, and critical leak testing. Featuring a high-contrast LCD screen with a five-digit main display, an integrated analog bar graph, and a secondary text area, the Zedeyes 3204 provides clear, real-time data visualization directly at the point of use.

To meet diverse industrial requirements, the gauge is offered in three selectable accuracy classes: 0.05% FS, 0.1% FS, and 0.25% FS. Coupled with a 330° axial rotatable display, 19 selectable pressure units, and versatile powering options, it delivers unmatched flexibility across demanding industrial workflows.

Key Features & Benefits

• Multi-Tier Accuracy Options: Select from three precision classes—0.05% FS, 0.1% FS, or 0.25% FS—to perfectly match your laboratory calibration or field testing tolerance levels.

• Rugged IP65 Housing: Built with a durable 100 mm metal enclosure rated to IP65 ingress protection, safeguarding internal electronics against dust, moisture, and harsh field environments.

• 330° Axial Display Rotation: The physical display casing rotates up to 330 degrees, allowing optimal readability regardless of mounting position or process connection angle.

• 19 Selectable Pressure Units: Effortlessly switch across 19 standard pressure measurement units for universal compatibility across international process systems.

• MIN/MAX Peak Value Tracking: Automatically log minimum and maximum pressure extremes to simplify stress analysis and hydrostatic pressure verification.

• Advanced Connectivity Options: Optional Bluetooth wireless connectivity and RS485 digital output enable real-time remote monitoring and automated data acquisition.

• Flexible Power & Process Connections: Powered via standard AAA batteries or optional rechargeable battery setups, with custom process fittings and OEM branding options available.

Primary Applications

• Oil & Gas Processing: High-reliability pressure monitoring, system pressure testing, and pipeline inspection.

• Calibration & Metrology Service: Ideal reference standard for calibrating analog pressure gauges, transmitters, and switches.

• Maintenance & Repair Facilities: In-shop troubleshooting, gauge repair, and test bench verification.

• Leak Testing & System Verification: Accurate pressure drop monitoring for leak detection in pressure vessels and piping networks.

• Portable Field Measurement: Heavy-duty instrument for on-site diagnostic testing in remote or harsh industrial environments.
