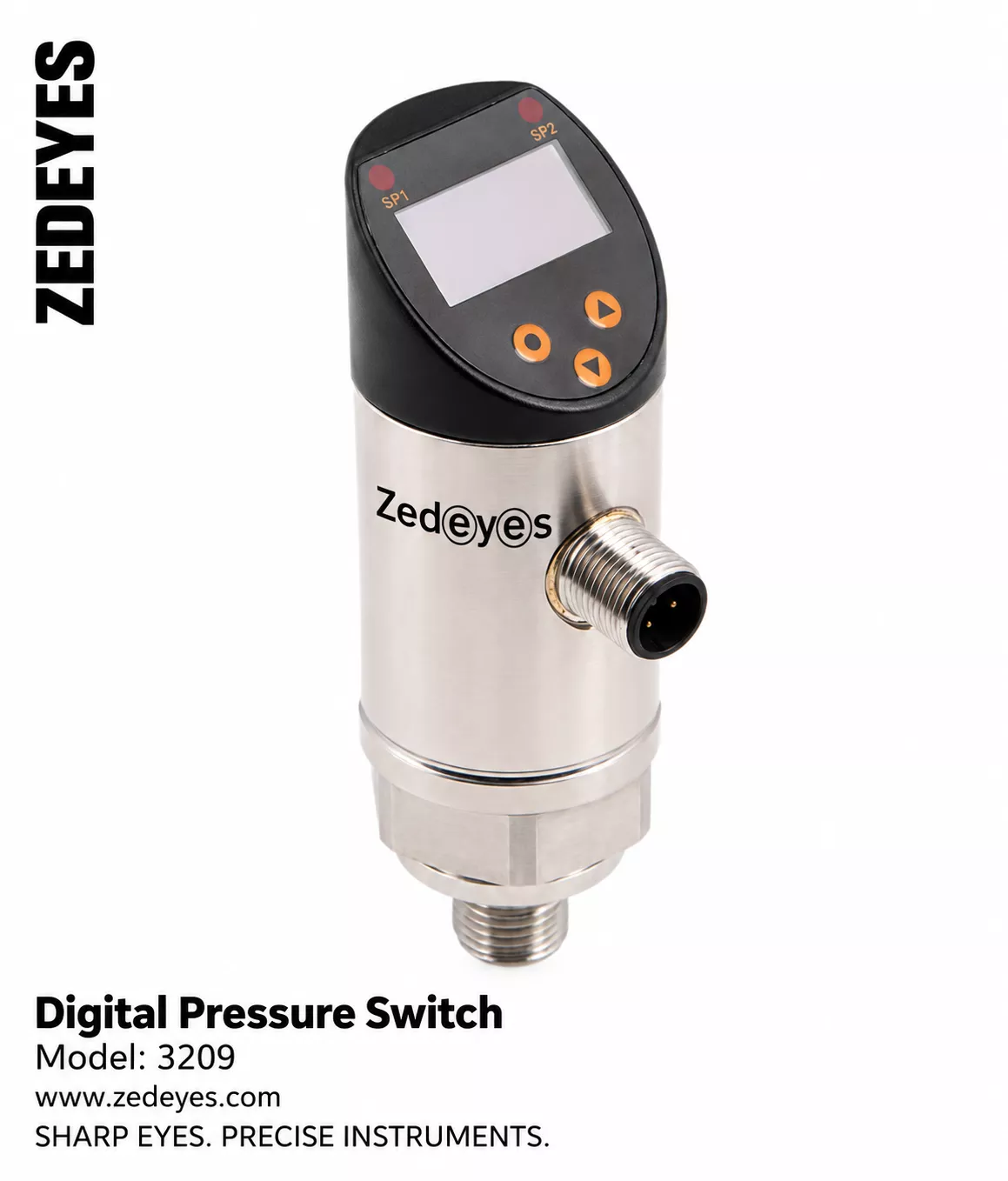

Zedeyes 3209 PNP/NPN Pressure Switch

The Zedeyes 3209 is an intelligent, high-precision digital pressure switch engineered to integrate real-time pressure measurement, local visual display, signal output, and automated process control into a single compact device. Built around a high-stability silicon piezoresistive pressure sensor, precision low-drift amplifier, and advanced microprocessor, the Model 3209 delivers reliable digital pressure tracking paired with dual switching outputs for automated machinery and safety interlocks.

Featuring a bright 4-digit OLED display, dual NPN/PNP output compatibility, and a intuitive keypad interface, the Zedeyes 3209 allows quick field configuration, adjustable response times, and one-key zero calibration. It is widely utilized across hydraulic control skids, water distribution loops, chemical processing, and automated machinery.

Key Features & Benefits

• Integrated Measurement & Control: Combines continuous local digital monitoring with two programmable switching outputs for seamless automated alarm and control integration.

• Silicon Piezoresistive Sensing: High-precision piezoresistive sensor paired with a low-drift amplifier provides rapid response and exceptional long-term stability.

• Bright 4-Digit OLED Display: High-contrast OLED screen delivers crisp, real-time pressure readouts and operational status even under low-light plant conditions.

• Freely Selectable NPN / PNP Compatibility: Versatile dual switching outputs can be configured for NPN or PNP logic to match any PLC or controller architecture.

• User-Friendly Keypad Interface: Features one-key zero reset, quick engineering unit conversion, and field-programmable switch actuation points.

• Adjustable Response Time: Configurable switching delay times prevent false alarms and relay chatter caused by transient pressure spikes or hydraulic hammer.

Primary Applications

• Hydraulic & Pneumatic Systems: Power units, hydraulic presses, fluid power skids, and automated clamping systems.

• Hydropower & Water Supply Networks: Booster pump control, pipeline pressure regulation, and municipal water distribution.

• Chemical & Petrochemical Plants: Process pressure interlocks, automated dosing pumps, and safety shutoff valves.

• Scientific Research & Test Benches: Precision fluid-pressure monitoring, leak testing rigs, and laboratory verification skids.

Specification
